How to replace the UNICUM dry-pit motor on your Abriblue pool cover

If you own an ⟨1⟩Abriblue⟨/1⟩ pool cover equipped with a dry-pit motor and it is showing signs of wear, this practical guide explains how to ⟨2⟩replace it easily and safely⟨/2⟩.
We will detail the steps, necessary equipment, and the appropriate references so that your cover regains optimal functionality.

Which dry-pit motor should you use for your Abriblue cover?

The choice of motor depends on the size and weight of your submerged cover:

  • ⟨1⟩⟨2⟩UNICUM DL6010 (500 Nm)⟨/2⟩⟨/1⟩: recommended for small to medium-sized Abriblue covers.

  • ⟨1⟩⟨2⟩UNICUM DL7710 (900 Nm)⟨/2⟩⟨/1⟩: recommended for wider or heavier Abriblue covers.

For power and control, use the ⟨1⟩UNIBOX 450 control box⟨/1⟩, specifically designed for UNICUM dry-pit motorizations.
This box manages the 24V power supply and allows you to control the cover via ⟨2⟩remote control⟨/2⟩ or ⟨3⟩wall-mounted switch⟨/3⟩.

These motorizations are fully ⟨1⟩compatible with Abriblue systems⟨/1⟩ such as the ⟨2⟩IMM’Box⟨/2⟩, ⟨3⟩IMM’Ax⟨/3⟩ or ⟨4⟩Open Neo⟨/4⟩ ranges, which use dry pits to protect the motor out of the water.

Why replace a dry-pit motor?

The dry-pit motor ensures the ⟨1⟩automatic opening and closing⟨/1⟩ of the cover while being ⟨2⟩isolated from water⟨/2⟩ in a watertight pit or technical compartment.
Over time, it may show certain signs of failure:

  • Partial or total blockage of the cover during winding or unwinding.

  • Unusual noises, vibrations, or jerks upon starting.

  • Erratic response or no movement when commanded.

  • Poor adjustment or drifting of the ⟨1⟩limit switches⟨/1⟩ (the cover no longer stops correctly).

Replacing the motor allows you to:

  • ⟨1⟩Preserve safety⟨/1⟩ and reliability of the cover.

  • ⟨1⟩Avoid premature wear⟨/1⟩ of the winding shaft and fixings.

  • ⟨1⟩Restore smooth and silent operation⟨/1⟩, compliant with original Abriblue performance.

Equipment and tools needed for replacing your dry-pit motor

Before starting, make sure you have:

  • ⟨1⟩⟨2⟩UNICUM DL6010 (500 Nm) or DL7710 (900 Nm) motor⟨/2⟩⟨/1⟩ depending on your cover.

  • ⟨1⟩⟨2⟩UNIBOX 450 box⟨/2⟩ for the power supply.⟨/1⟩

  • Allen key, flat-head and Phillips screwdrivers.

  • Set of wrenches.

  • Spirit level for shaft alignment.

  • Protective gloves and goggles.

  • Abriblue documentation for wiring diagrams and limit switch settings.

Photo article site DEl
Mayotte coffre sec scaled 1

Step 1: Secure the pool and cut the electricity

  1. Turn off the ⟨1⟩main power supply⟨/1⟩ at the panel and the cover's control box.

  2. Ensure that the cover is ⟨1⟩completely closed⟨/1⟩.

  3. Protect the area around the pool to avoid any accidents.

Step 2: Access the dry-pit motor

  • Open the dry-pit cover provided for this purpose on the Fluidra pool cover.

  • Check that there is ⟨1⟩no standing water⟨/1⟩, debris, or corrosion — the motor must be in a "dry pit" above the water level, as recommended by Fluidra. ⟨2⟩⟨3⟩⟨4⟩⟨5⟩⟨6⟩Fluidra Industry⟨/6⟩⟨7⟩+1⟨/7⟩⟨/5⟩⟨/4⟩⟨/3⟩⟨/2⟩

  • Locate all fixings holding the motor to the cover's shaft as well as the wiring (24V power, limit switches, control link).

  • ⟨1⟩Tip⟨/1⟩: Before disconnecting anything, take a clear photo of the wiring and the position of the components to guide reassembly.

volet immerge fluidra
Coffre sec demontage1

Step 3: Disconnect and remove the motor

  1. Carefully disconnect all cables: power supply, limit switches, connection to the roller.

  2. Remove the fixings that hold the motor on the shaft.

  3. Remove the motor and inspect:

    • The shaft to ensure it is not bent.

    • The bearings to ensure they rotate freely.

    • The coupling for cracks or excessive play.

Step 4: Install the new replacement motor for your pool cover

  • Position the new motor ⟨1⟩in perfect alignment⟨/1⟩ with the winding shaft in the dry pit.

  • Secure it firmly with the screws and supports provided.

  • Reconnect all cables according to your photos (power supply, limit switches, control link).

  • Install the ⟨1⟩control box⟨/1⟩ and connect it correctly to the motor.

  • Set the high and low limit switches to ensure smooth movement of the cover.

  • Check that the shaft and motor are properly aligned: any misalignment can cause blockages or premature wear.

volet piscine caillebotis immerges moteur coffre sec

Step 5: Tests and checks of the UNICUM DL6010 / DL7710 motor for dry pit

  • Restore the power and perform several opening and closing cycles of the cover.

  • Verify that the cover moves up and down ⟨1⟩smoothly⟨/1⟩, without noise or blockage.

  • Ensure that the pit remains ⟨1⟩dry⟨/1⟩ and watertight, without water infiltration.

  • Check the proper functioning of the limit switches and the remote control.



Step 6: Maintenance after replacement

To extend the life of the motor:

  • Regularly clean the dry pit to prevent accumulation of leaves or debris.

  • Check the motor and control box annually.

  • Keep a record of interventions and photos for tracking and maintenance.

  • Follow the manufacturer's instructions for maintenance and winterizing to extend the life of the motor and the cover.

Replacing the dry-pit motor of your Abriblue cover with an ⟨1⟩⟨2⟩UNICUM DL6010 or DL7710⟨/2⟩⟨/1⟩ and the ⟨3⟩⟨4⟩UNIBOX 450⟨/4⟩⟨/3⟩ box is simple.

If you follow the steps described: securing, dismantling, installation, adjustment, and checks.

With regular maintenance, your Abriblue cover will regain smooth and reliable use, allowing you to fully enjoy your pool in complete safety.

moteur coffre sec unicum 120250500800 nm pour piscine

Get a dry-pit motor and a box adapted to your pool cover

Moteur Unicum coffre sec
View the UNICUM motor for dry pit

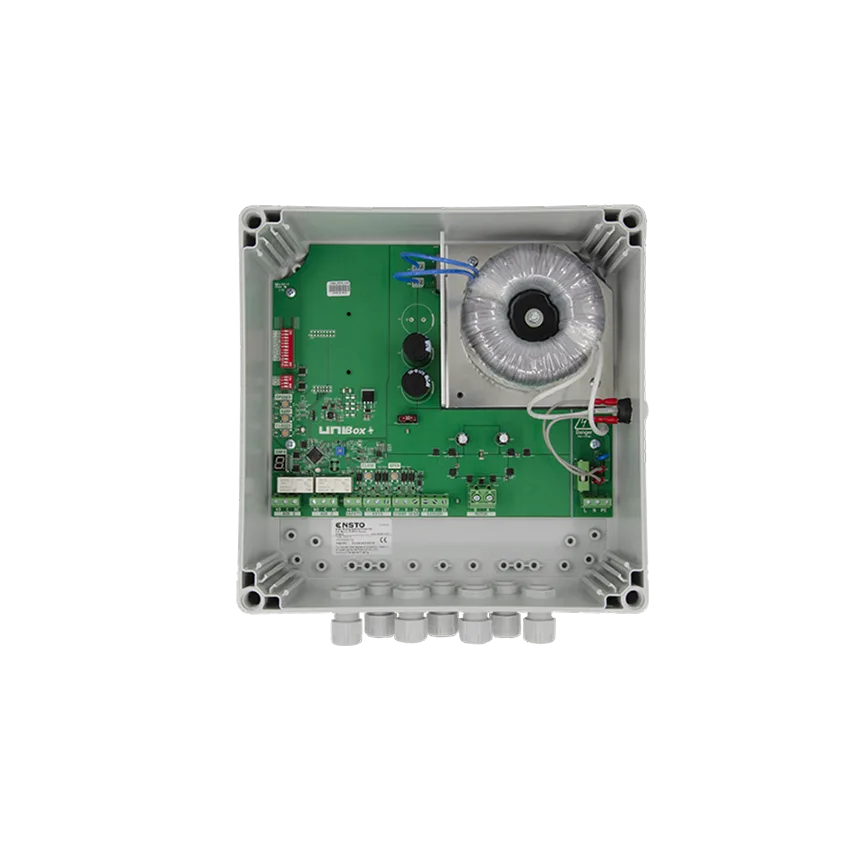

coffret alimentation unibox 250 va pour moteur unicum 250nm du coffret Unicum UNIBOX 450 Va 15A
View the UNIBox 450 box

FAQ

⟨1⟩Q: Can I install a generic motor instead of a UNICUM motor on an Abriblue cover?⟨/1⟩
⟨2⟩A:⟨/2⟩ It is preferable to use a compatible ⟨3⟩UNICUM DL6010 or DL7710⟨/3⟩ motor. These models respect the mechanical and electrical specifications of ⟨4⟩Abriblue⟨/4⟩ covers, guaranteeing adapted torque and perfect integration with the ⟨5⟩UNIBOX 450⟨/5⟩ box.

⟨1⟩Q: Where should the UNIBOX 450 box be installed?⟨/1⟩
⟨2⟩A:⟨/2⟩ The box must be placed in a ⟨3⟩dry and ventilated⟨/3⟩ technical room, more than ⟨4⟩3.5 m from the pool⟨/4⟩ in accordance with electrical standards. It must remain accessible for limit switch adjustments and maintenance operations.

⟨1⟩Q: Can I replace the motor myself?⟨/1⟩
⟨2⟩A:⟨/2⟩ Yes, if you have basic knowledge of electricity and mechanics. However, it is advisable to ⟨3⟩call on a certified Abriblue installer⟨/3⟩ to guarantee the watertightness of the dry pit and the electrical conformity of the installation.

⟨1⟩Q: How do I maintain my Abriblue dry-pit motor?⟨/1⟩
⟨2⟩A:⟨/2⟩ Regularly clean the pit or dry box to prevent the accumulation of water and debris. Check annually:

  • the ⟨1⟩functioning of the limit switches⟨/1⟩,

  • the ⟨1⟩tightness of the shaft fixings⟨/1⟩,

  • the ⟨1⟩watertightness of the seals⟨/1⟩ around the motor.
    Regular maintenance extends the motor's life and ensures optimal operation.
